Extract Color Palette
Extracts a cohesive color palette from any input image and renders it as a clean, full-resolution color bar. You can choose how many colors to pull and whether each color's width reflects its visual dominance in the image or all colors are shown in equal proportions.
About

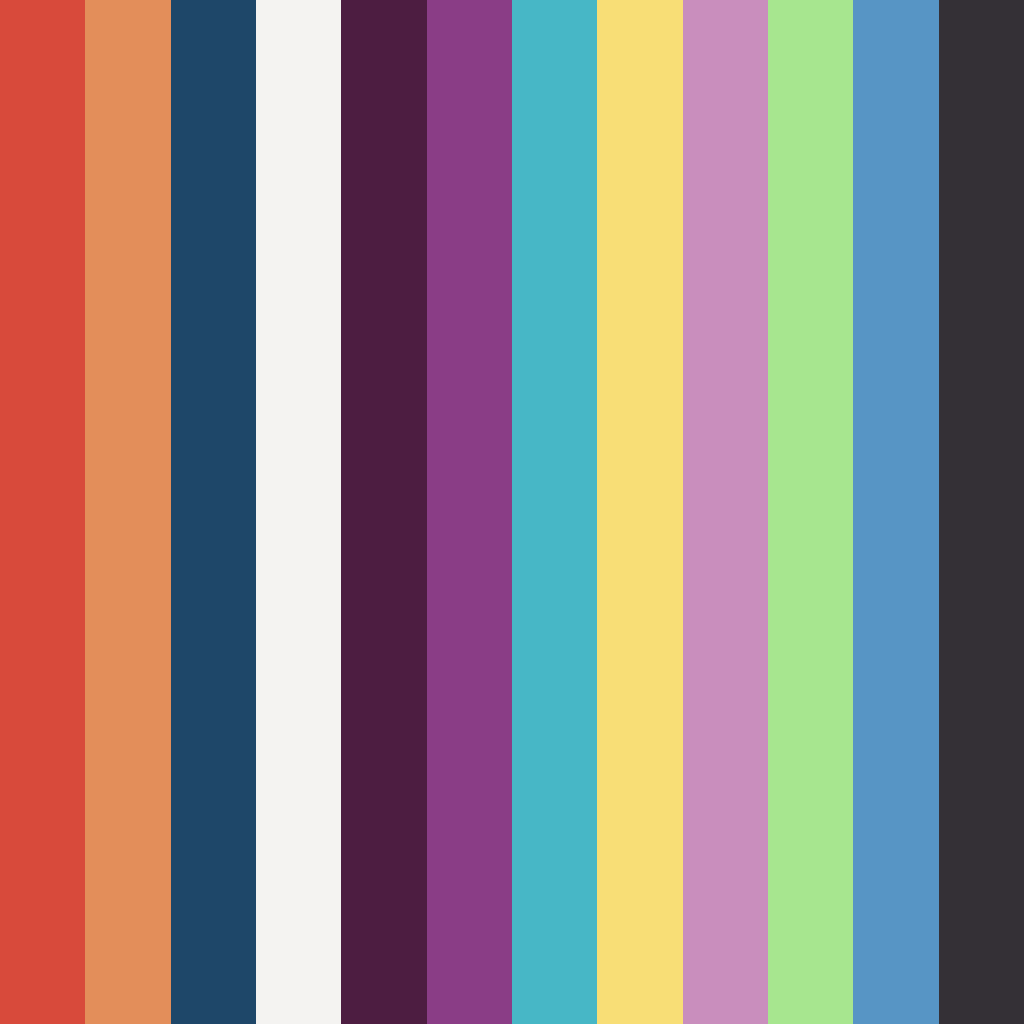

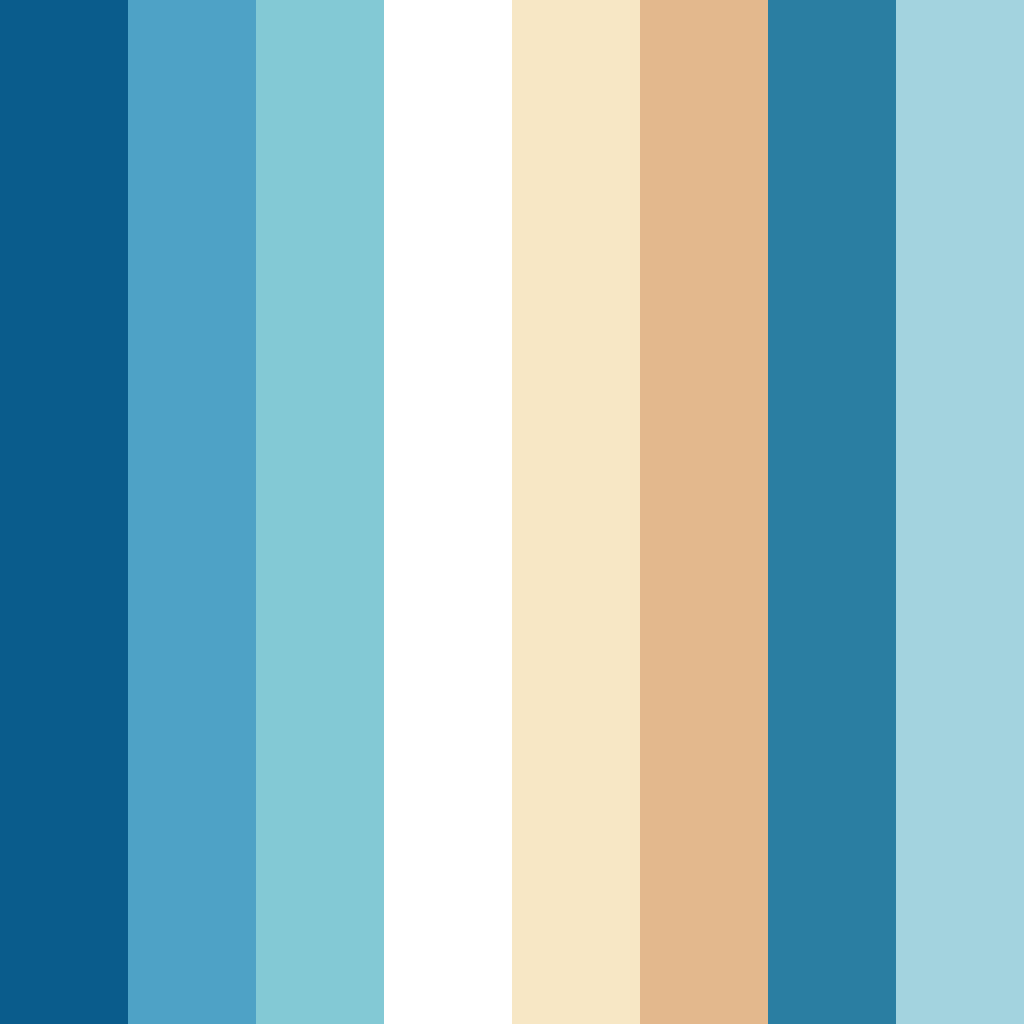

This ComfyUI workflow extracts a cohesive color palette from any input image and renders it as a clean, full-resolution color bar. It lets you control how many colors to include and whether each swatch’s width is equal or proportional to its visual dominance in the source. The result is a ready-to-share palette image that’s ideal for mood boards, branding guides, UI tokens, or color study references.
Technically, the pipeline is straightforward and fast. LoadImage brings your source image into the graph, then a GLSLShader analyzes pixel colors, groups similar hues into N buckets, estimates their relative presence, and draws the final horizontal palette. A PrimitiveInt sets the target number of colors, while a ComfySwitchNode toggles between equal-width and dominance-weighted swatches. Use ResolutionSelector to set the exact output dimensions for your color bar, and SaveImageAdvanced to control file naming and destination.
Everything runs inside ComfyUI, so you can iterate quickly by adjusting a couple of node values and re-queuing.
What you provide
- Reading the workflow
Runs in ComfyUI. This workflow can't run on this page. Open it in Comfy Cloud with everything loaded, or download it for your own ComfyUI.
Try in CloudTry an example
Inside the workflow
A read-only preview of the node graph. Open it in Comfy Cloud or download it to edit the nodes.
Loading the graph
Open full-size workflow preview- Author
- Rob
Requires custom nodes
- Reading the workflow
Use this workflow from code
Generated from the workflow graph and inputs when possible; stored examples are shown otherwise. Review credentials and endpoints before running code, which may incur charges.
What you need
- Runs on
- Comfy Cloud
- Key
- COMFY_API_KEY
- Your files
- Uploaded by the code from their urls
Needs a paid Cloud plan and credits.
# Python 3.10+: pip install comfy-sdk==0.4.0
import os
from comfy_sdk import Comfy
api_key = os.environ.get("COMFY_API_KEY", "").strip()
if not api_key: raise RuntimeError("Set COMFY_API_KEY")
os.environ.setdefault("COMFY_BASE_URL", "https://cloud.comfy.org")
client = Comfy(api_key=api_key)
workflow = client.workflows.from_json({
"148": {
"class_type": "LoadImage",
"inputs": {
"image": "UPLOADED_image_FILENAME"
},
"_meta": {
"title": "Load Image"
}
},
"149": {
"class_type": "GLSLShader",
"inputs": {
"fragment_shader": "#version 300 es\n// kmeans_palette.glsl — GPU k-means dominant colors -> vertical stripes.\n//\n// INPUTS\n// u_image0 — source image (required)\n// u_int0 — stripe count K (try this first)\n// u_float0 — stripe count K (use this if u_int0 doesn't update; this node\n// forwards floats more reliably than ints)\n// If neither input forwards a value, K falls back to DEFAULT_K below.\n//\n// OUTPUT SIZE: set on the node via size_mode -> custom (width / height),\n// not in the shader. Keep it >= ~64x64.\n\n#pragma passes 10\n\nprecision highp float;\n\nconst int DEFAULT_K = 8; // used only if no count input forwards\nconst int MAX_K = 16;\nconst int NUM_PASSES = 10; // keep equal to `#pragma passes` above\nconst int GRID = 48; // cached source samples per axis\n\nuniform sampler2D u_image0; // pass 0: SOURCE; pass 1+: ping-pong buffer\nuniform vec2 u_resolution;\nuniform int u_int0; // K (preferred)\nuniform float u_float0; // K (fallback path)\nuniform int u_pass;\n\nin vec2 v_texCoord;\nlayout(location = 0) out vec4 fragColor0;\n\nint resolveK() {\n int k = 0;\n if (u_int0 > 0) k = u_int0; // try the int input\n else if (u_float0 > 0.5) k = int(u_float0 + 0.5); // else the float input\n else k = DEFAULT_K; // else the constant\n return clamp(k, 2, MAX_K);\n}\n\nvec3 readCentroid(int i) { return texelFetch(u_image0, ivec2(i, 0), 0).rgb; }\nvec3 readCache(int sx, int sy) { return texelFetch(u_image0, ivec2(sx, sy + 1), 0).rgb; }\n\nint nearestCentroid(vec3 px, int K) {\n float best = 1e9;\n int bi = 0;\n for (int j = 0; j < MAX_K; j++) {\n if (j >= K) break;\n vec3 d = px - readCentroid(j);\n float dist = dot(d, d);\n if (dist < best) { best = dist; bi = j; }\n }\n return bi;\n}\n\nvoid main() {\n int K = resolveK();\n ivec2 frag = ivec2(gl_FragCoord.xy);\n\n // PASS 0: cache a GRID x GRID downsample of the source (rows 1..GRID) and\n // seed K centroids (row 0). On this pass u_image0 IS the source.\n if (u_pass == 0) {\n if (frag.y == 0 && frag.x < K) {\n float u = (float(frag.x) + 0.5) / float(K);\n float v = fract(u * 2.6180339887);\n fragColor0 = vec4(texture(u_image0, vec2(u, v)).rgb, 1.0);\n } else if (frag.y >= 1 && frag.y <= GRID && frag.x < GRID) {\n vec2 uv = (vec2(float(frag.x), float(frag.y - 1)) + 0.5) / float(GRID);\n fragColor0 = vec4(texture(u_image0, uv).rgb, 1.0);\n } else {\n fragColor0 = vec4(0.0, 0.0, 0.0, 1.0);\n }\n return;\n }\n\n // PASSES 1..N-2: one k-means iteration\n if (u_pass < NUM_PASSES - 1) {\n if (frag.y == 0 && frag.x < K) {\n int c = frag.x;\n vec3 sum = vec3(0.0);\n float cnt = 0.0;\n for (int sy = 0; sy < GRID; sy++) {\n for (int sx = 0; sx < GRID; sx++) {\n vec3 px = readCache(sx, sy);\n if (nearestCentroid(px, K) == c) { sum += px; cnt += 1.0; }\n }\n }\n fragColor0 = vec4(cnt > 0.0 ? sum / cnt : readCentroid(c), 1.0);\n } else {\n fragColor0 = texelFetch(u_image0, frag, 0);\n }\n return;\n }\n\n // FINAL PASS: K vertical stripes\n int band = clamp(int(v_texCoord.x * float(K)), 0, K - 1);\n fragColor0 = vec4(readCentroid(band), 1.0);\n}",
"images.image0": [
"148",
0
],
"ints.u_int0": [
"150",
0
],
"size_mode": "custom",
"size_mode.height": [
"153",
1
],
"size_mode.width": [
"153",
0
]
},
"_meta": {
"title": "GLSL Shader"
}
},
"150": {
"class_type": "PrimitiveInt",
"inputs": {
"value": 12
},
"_meta": {
"title": "Palette Size"
}
},
"151": {
"class_type": "GLSLShader",
"inputs": {
"fragment_shader": "#version 300 es\n// kmeans_palette_weighted.glsl — GPU k-means dominant colors as vertical stripes,\n// with each stripe's WIDTH proportional to that color's share of the image.\n// Widths are snapped to 2.5% increments (largest-remainder), so a colour that's\n// a tiny fraction rounds to 0% (disappears) or 2.5% min — no negligible slivers.\n//\n// INPUTS\n// u_image0 — source image (required)\n// u_int0 — max number of colors K (drive with the stock \"Int\" node)\n// u_float0 — same, fallback if u_int0 doesn't forward\n// If neither forwards, K = DEFAULT_K below.\n//\n// OUTPUT SIZE: set on the node via size_mode -> custom. Keep >= ~64x64.\n//\n// NOTE: stripes are NOT equal width here, so ShaderPaletteToHex (which samples\n// equal bands) won't line up — use the equal-width kmeans_palette.glsl for that.\n\n#pragma passes 10\n\nprecision highp float;\n\nconst int DEFAULT_K = 8;\nconst int MAX_K = 16;\nconst int NUM_PASSES = 10; // keep equal to `#pragma passes`\nconst int GRID = 48; // cached source samples per axis\nconst int STEPS = 40; // 100% / 2.5% -> stripe widths are multiples of 2.5%\nconst float TOTAL = float(GRID * GRID);\n\nuniform sampler2D u_image0; // pass 0: SOURCE; pass 1+: ping-pong buffer\nuniform vec2 u_resolution;\nuniform int u_int0;\nuniform float u_float0;\nuniform int u_pass;\n\nin vec2 v_texCoord;\nlayout(location = 0) out vec4 fragColor0;\n\nint resolveK() {\n int k = u_int0 > 0 ? u_int0 : (u_float0 > 0.5 ? int(u_float0 + 0.5) : DEFAULT_K);\n return clamp(k, 2, MAX_K);\n}\n\n// row 0: centroids — rgb = colour, a = cluster's share of samples (0..1)\n// rows 1..GRID: cached source downsample\nvec3 readColor(int i) { return texelFetch(u_image0, ivec2(i, 0), 0).rgb; }\nfloat readShare(int i) { return texelFetch(u_image0, ivec2(i, 0), 0).a; }\nvec3 readCache(int sx, int sy){ return texelFetch(u_image0, ivec2(sx, sy + 1), 0).rgb; }\n\nint nearestCentroid(vec3 px, int K) {\n float best = 1e9;\n int bi = 0;\n for (int j = 0; j < MAX_K; j++) {\n if (j >= K) break;\n vec3 d = px - readColor(j);\n float dist = dot(d, d);\n if (dist < best) { best = dist; bi = j; }\n }\n return bi;\n}\n\nvoid main() {\n int K = resolveK();\n ivec2 frag = ivec2(gl_FragCoord.xy);\n\n // PASS 0: cache source (rows 1..GRID) + seed centroids (row 0)\n if (u_pass == 0) {\n if (frag.y == 0 && frag.x < K) {\n float u = (float(frag.x) + 0.5) / float(K);\n float v = fract(u * 2.6180339887);\n fragColor0 = vec4(texture(u_image0, vec2(u, v)).rgb, 0.0);\n } else if (frag.y >= 1 && frag.y <= GRID && frag.x < GRID) {\n vec2 uv = (vec2(float(frag.x), float(frag.y - 1)) + 0.5) / float(GRID);\n fragColor0 = vec4(texture(u_image0, uv).rgb, 1.0);\n } else {\n fragColor0 = vec4(0.0);\n }\n return;\n }\n\n // PASSES 1..N-2: k-means iteration; store cluster share in alpha\n if (u_pass < NUM_PASSES - 1) {\n if (frag.y == 0 && frag.x < K) {\n int c = frag.x;\n vec3 sum = vec3(0.0);\n float cnt = 0.0;\n for (int sy = 0; sy < GRID; sy++) {\n for (int sx = 0; sx < GRID; sx++) {\n vec3 px = readCache(sx, sy);\n if (nearestCentroid(px, K) == c) { sum += px; cnt += 1.0; }\n }\n }\n vec3 col = cnt > 0.0 ? sum / cnt : readColor(c);\n fragColor0 = vec4(col, cnt / TOTAL); // alpha = share of samples\n } else {\n fragColor0 = texelFetch(u_image0, frag, 0);\n }\n return;\n }\n\n // FINAL PASS: weighted vertical stripes, widths snapped to 2.5% slots.\n // Largest-remainder allocation of STEPS slots so they sum to exactly 100%.\n int floorSlots[MAX_K];\n float rem[MAX_K];\n int used = 0;\n for (int j = 0; j < MAX_K; j++) {\n float share = (j < K) ? readShare(j) : 0.0;\n if (share > 0.0) {\n float rs = share * float(STEPS);\n int fs = int(floor(rs));\n floorSlots[j] = fs;\n rem[j] = rs - float(fs);\n used += fs;\n } else {\n floorSlots[j] = 0;\n rem[j] = -1.0; // empty/unused cluster never gets a slot\n }\n }\n int remaining = STEPS - used; // leftover slots (always fills to STEPS)\n\n // Each leftover slot goes to a largest-remainder cluster (rank-based, stable).\n int slots[MAX_K];\n for (int j = 0; j < MAX_K; j++) {\n int rank = 0;\n for (int m = 0; m < MAX_K; m++) {\n if (rem[m] > rem[j] || (rem[m] == rem[j] && m < j)) rank++;\n }\n slots[j] = floorSlots[j] + (rank < remaining ? 1 : 0);\n }\n\n // Render order: largest weight on the left -> smallest on the right.\n // Rank each cluster by slot count (desc, tie-break by index) to get a stable\n // left->right order, then place each cluster at its rank position.\n int order_[MAX_K];\n for (int j = 0; j < MAX_K; j++) {\n int rnk = 0;\n for (int m = 0; m < MAX_K; m++) {\n if (slots[m] > slots[j] || (slots[m] == slots[j] && m < j)) rnk++;\n }\n order_[rnk] = j;\n }\n\n // Which stripe does this pixel's x fall into, walking left->right by weight?\n float xslot = v_texCoord.x * float(STEPS);\n int cum = 0;\n int chosen = order_[0]; // widest, leftmost (safety default)\n for (int r = 0; r < MAX_K; r++) {\n cum += slots[order_[r]];\n if (xslot < float(cum)) { chosen = order_[r]; break; }\n }\n fragColor0 = vec4(readColor(chosen), 1.0);\n}\n",
"images.image0": [
"148",
0
],
"ints.u_int0": [
"150",
0
],
"size_mode": "custom",
"size_mode.height": [
"153",
1
],
"size_mode.width": [
"153",
0
]
},
"_meta": {
"title": "GLSL Shader"
}
},
"152": {
"class_type": "ComfySwitchNode",
"inputs": {
"on_false": [
"149",
0
],
"on_true": [
"151",
0
],
"switch": True
},
"_meta": {
"title": "If/Else Switch"
}
},
"153": {
"class_type": "ResolutionSelector",
"inputs": {
"aspect_ratio": "16:9 (Widescreen)",
"megapixels": 1,
"multiple": 8
},
"_meta": {
"title": "Resolution Selector"
}
},
"154": {
"class_type": "SaveImageAdvanced",
"inputs": {
"filename_prefix": "extracted_color_palette",
"format": "png",
"format.bit_depth": "8-bit",
"format.input_color_space": "sRGB",
"images": [
"152",
0
]
},
"_meta": {
"title": "Save Image (Advanced)"
}
}
})
# Replace each example.com URL with a public URL of your file.
workflow.set_input("148", "image", client.assets.from_url("https://example.com/replace-with-a-url/image"))
# run() also passes api_key to the partner nodes in this workflow.
job = client.run(workflow, api_key=api_key)Questions & answers
The GLSLShader groups similar pixel colors into a specified number of buckets and estimates how much of the image each bucket represents. It then renders swatches for the top buckets, ordered and sized according to your selected mode (equal or dominance-weighted).

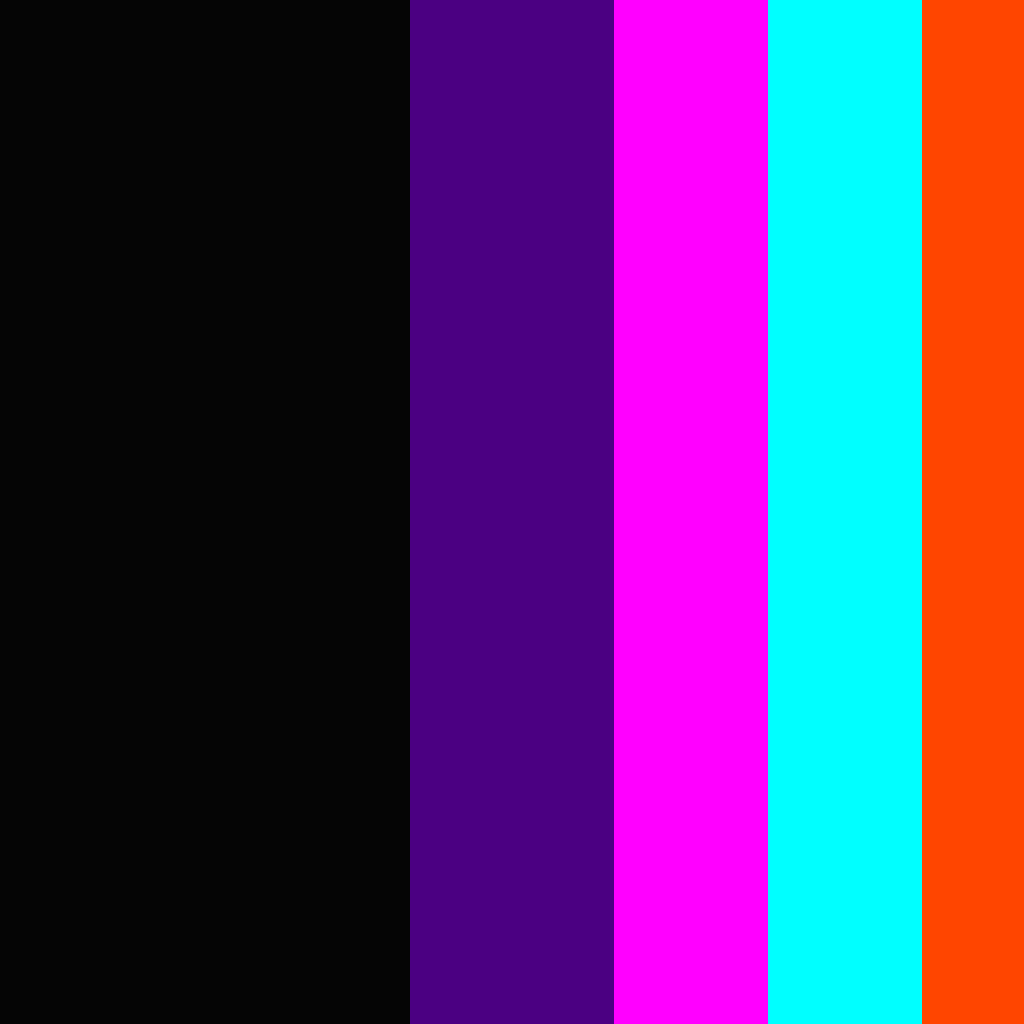

Use Equal when you want a balanced, presentation-friendly palette where each color gets the same visual weight. Use Weighted to reflect the image’s true color proportions—this is helpful for analysis, grading references, and dataset QA.
For branding and UI, 5–8 colors usually give a clean, usable set. For complex scenes or analysis, 10–16 can capture more nuance. Too many colors may introduce near-duplicates; if that happens, lower the count or crop the image to the most relevant region.
Highly compressed, noisy, or patterned images can introduce tiny color fragments. Try using a higher-quality source, cropping busy areas, or reducing the number of colors. Switching to Weighted mode can also minimize the impact of small, insignificant colors.
Yes. Set exact dimensions in ResolutionSelector to control the palette’s resolution, and configure SaveImageAdvanced for the output directory and filename pattern.
